Customisable high-speed optical mapping systems for simultaneous voltage and calcium imaging in cardiac research applications.

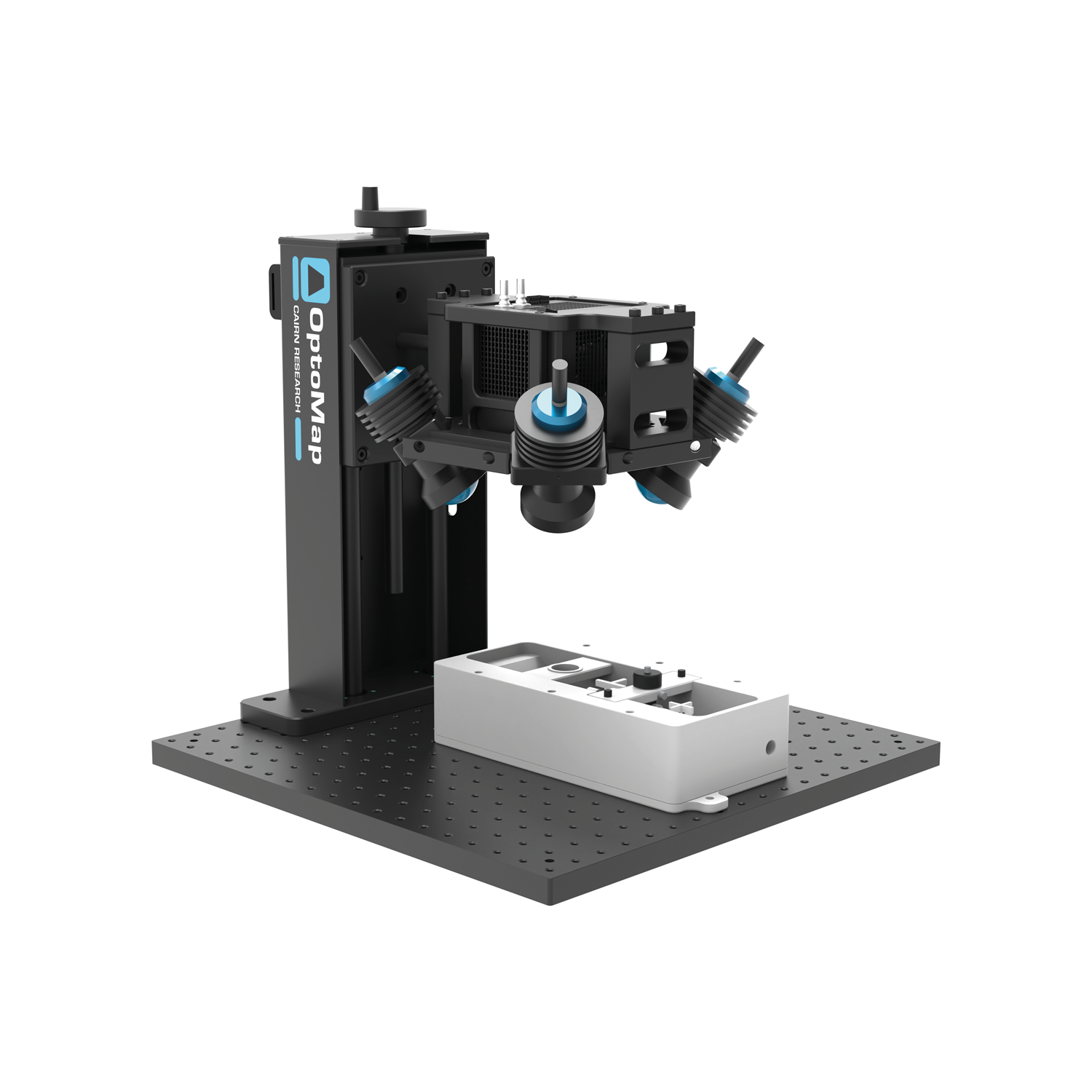

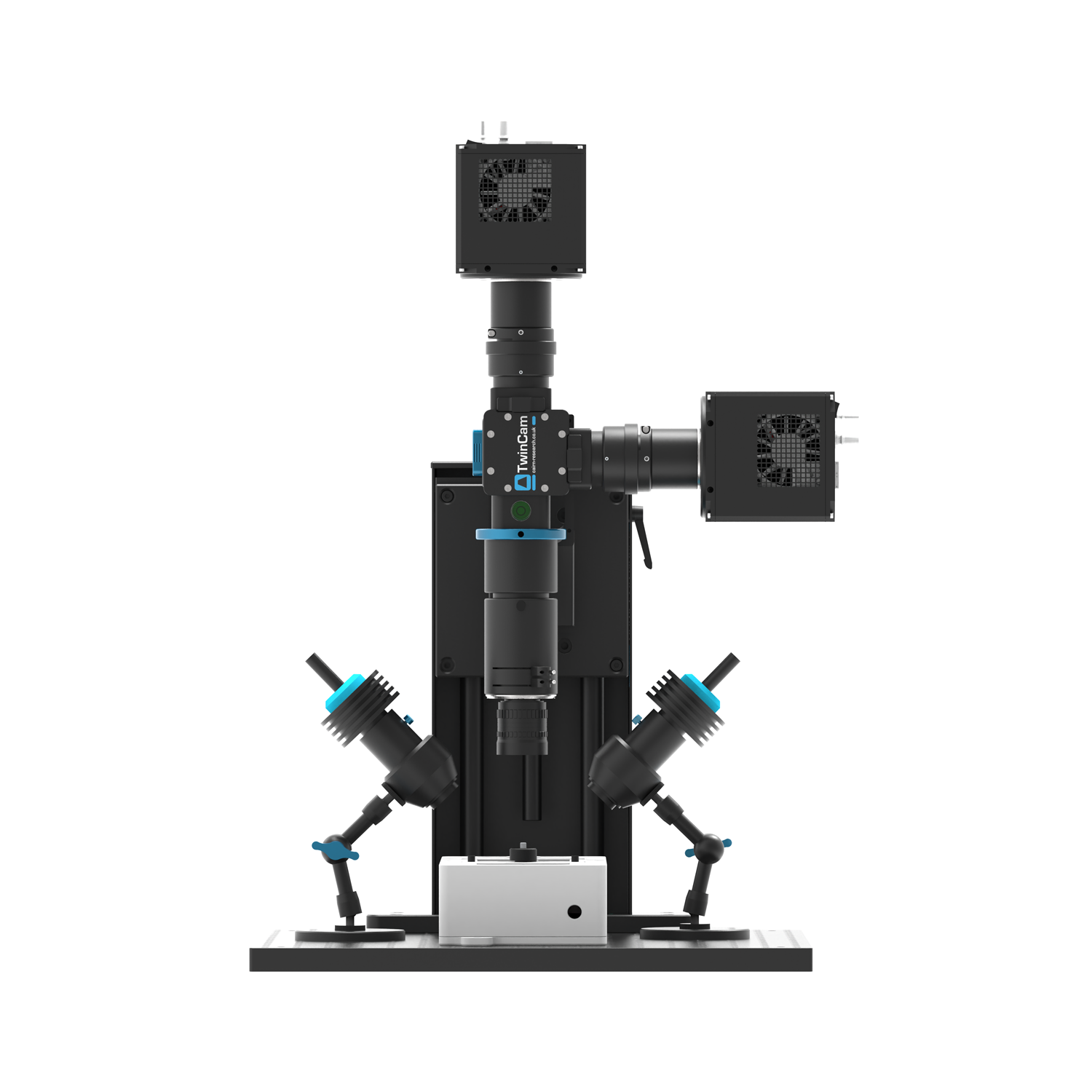

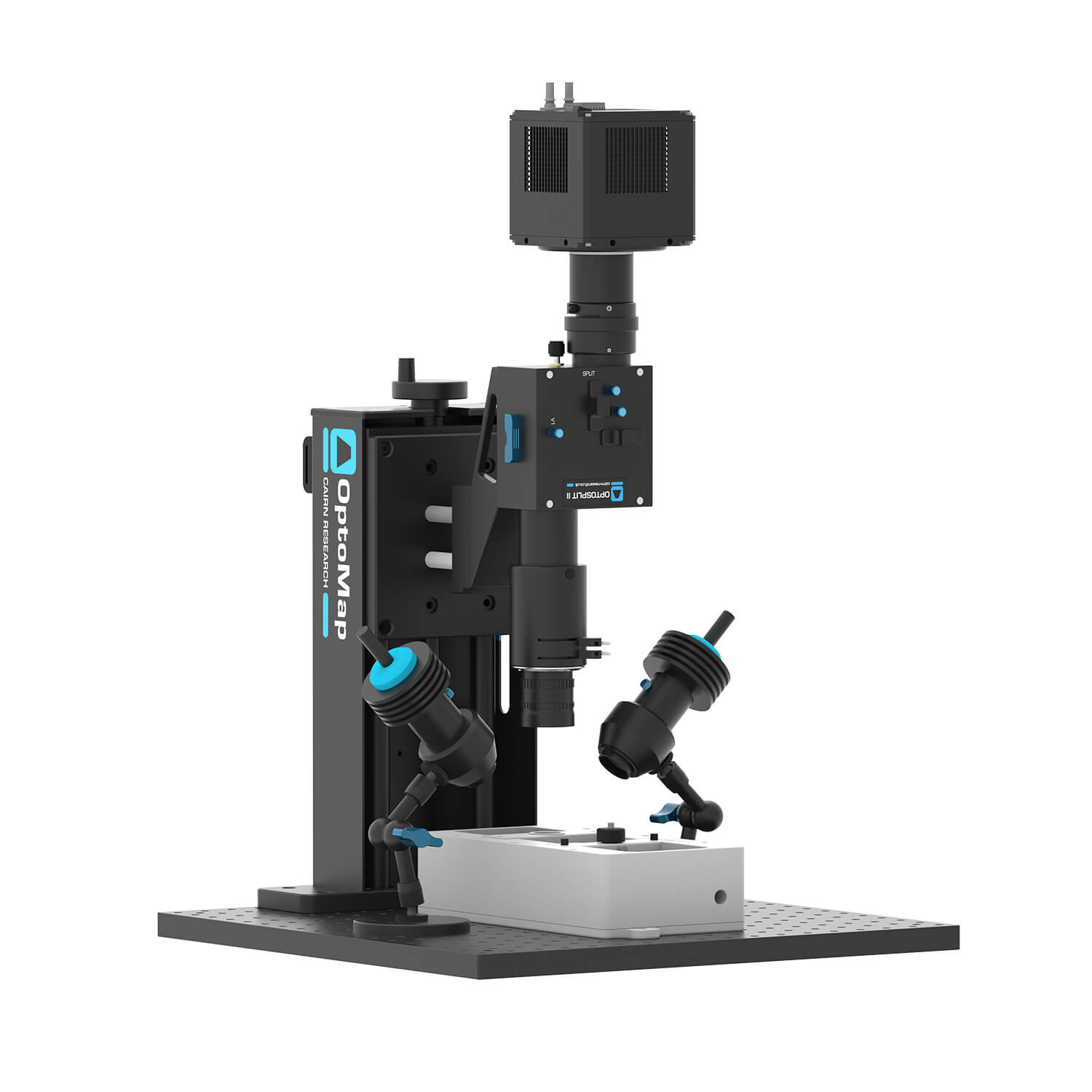

The OptoMap platform from Cairn Research delivers high-speed optical mapping with precision optics, synchronised acquisition, and powerful LED illumination for demanding cardiac imaging applications. Designed around the needs of individual experiments, each system can be configured with tailored optics, cameras, and illumination pathways to support simultaneous multi-wavelength imaging and accurate signal separation.
OptoMap systems integrate seamlessly with existing electrophysiology setups and are supported by Cairn Research’s in-house optics expertise, enabling reliable, reproducible acquisition for dynamic cardiac events and advanced optical mapping workflows.
OptoMap systems are designed for advanced cardiac optical mapping applications requiring high temporal precision and reliable signal separation. The platform supports simultaneous voltage and calcium imaging, enabling researchers to study excitation-contraction coupling, conduction dynamics, arrhythmogenesis, and pharmacological responses in isolated heart preparations and tissue models.
Each system is configurable to suit specific experimental workflows, including camera selection, illumination geometry, emission splitting, and synchronised acquisition. The modular design allows integration with existing electrophysiology and perfusion setups while maintaining the flexibility needed for evolving research requirements.
Cairns’s design ethos is based on compatibility across a wide range of manufacturers. In the rare case where we do not have a compatible part, we have a custom design team available to provide a solution.
We provide a comprehensive 12-month warranty on all our products.
We aim for a delivery time of 2-4 weeks. However, the specific delivery time will be confirmed at the point of order.
We offer full training and support across our entire product range.
Yes, we have full custom design capabilities and a multidisciplinary team of scientists and engineers available to provide a solution that meets your needs.
Our CellCams are supported in Micro-Manager.
