Photometrics Iris (Series)

The Iris 9 delivers frame rates in excess of 30 frames per second, while the larger format 25 mm sensor of the Iris 15 is designed to increase throughput, maximize the amount of data captured and take full advantage of new, larger field of view microscopes.

Add to Quote
Share
Share
Share
Email

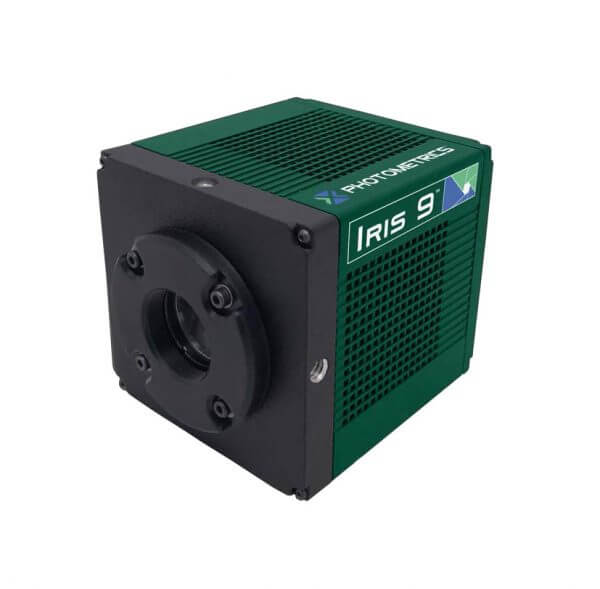

Photometrics Iris 9

Iris 9 Scientific CMOS (sCMOS) camera is designed to deliver extremely high resolution images for live cell imaging applications. Iris 9 delivers a 9 Megapixel sensor with a 17.8 mm field of view ensuring it can maximize amount of data in a single frame.

Resolution and Pixel Size
The small, 4.25 µm pixels provide highly detailed images across the imaging plane, which allows for the highest resolution when using lower magnification objectives.

sCMOS Sensitivity
The low noise and high quantum efficiency across a wide range of wavelengths produces higher quality images with lower exposure times than conventional CCD cameras.

Advanced Triggering
Programmable Scan Mode provides increased control over the rolling shutter exposure and read-out functionality of CMOS sensors by providing access to the sensor timing settings to allow optimization around applications that require control over the line time.

Superior Background Quality
The Iris 9 features Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that it delivers clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.

Photometrics Iris 15

The Iris 15 Scientific CMOS (sCMOS) camera provides a large field of view and the highest resolution with its 15 Megapixel design.

Large Field of View
The larger format 25 mm sensor of the Iris 15 is designed to increase throughput, maximize the amount of data captured and take full advantage of new, larger field of view microscopes.

High Resolution
The small, 4.25 µm pixels provide highly detailed images across the imaging plane, which allows for the highest resolution when using lower magnification objectives.

Advanced Triggering
Programmable Scan Mode provides increased control over the rolling shutter exposure and read-out functionality of CMOS sensors by providing access to the sensor timing settings to allow optimization around applications that require control over the line time.

Superior Background Quality
The Iris 15 features Pattern Noise Reduction Technology and Correlated Noise Reduction Technology to ensure that it delivers clean, pattern-free images with minimal pixel defects, delivering improved image quality in low light conditions.

Compact Form Factor
The Iris 15 is a compact 78 x 78 x 108 mm with optimized cooling for the size, ideal for integration into new or existing configurations.

Application Usage

Please ask for more information.

Features and Benefits

  • Sensor Technology – sCMOS
  • Quantum Efficiency – 73%
  • Pixel Size – 4.25 µm x 4.25 µm
  • Supported Interfaces – PCIe
  • Spectrum Capabilities – Visible (400-700 nm) Near Infrared (700-1000 nm)
  • Read Noise (median) – 1.5 e-

Iris 9

  • Megapixels – 9
  • Sensor area – 12.61mm x 12.61mm (17.8mm diagonal)
  • Frame rate – 30 fps @16bit

Iris 15

  • Megapixels – 15
  • Sensor area – 21.49mm x 12.61mm (24.9mm diagonal)
  • Frame rate – 30 fps @16bit

Research Examples

Coming Soon!

FAQ

Cairns’s design ethos is based on compatibility across a wide range of manufacturers. In the rare case where we do not have a compatible part, we have a custom design team available to provide a solution.

We provide a comprehensive 12-month warranty on all our products.

We aim for a delivery time of 2-4 weeks. However, the specific delivery time will be confirmed at the point of order.

We offer full training and support across our entire product range.

Yes, we have full custom design capabilities and a multidisciplinary team of scientists and engineers available to provide a solution that meets your needs.

Our CellCams are supported in Micro-Manager.
